TECHFLUID YANTAI LIMITED
Floating Hose FT10 FT20
Introduction

• Application:Floating delivery hose for transferring various fluids and materials such as fuel oil, barite, mud, potable water and other supplies between drilling platform and supplying vessel. A self-bonded buoyancy layer gives superior, stable flotation compared with external float jackets.

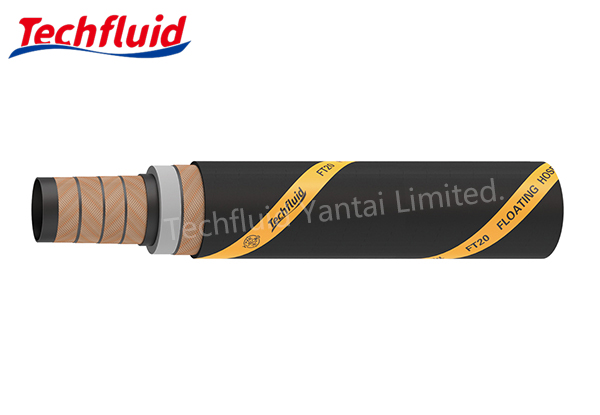

• Hose structure:

Tube: compound selected to match the conveyed medium

Reinforcement: high tensile textile plies with embedded anti-static copper wire for anti-static

Floating layer: microcellular foamed synthetic materials

Cover: black synthetic Neoprene rubber, resistant to oil,wear,ozne & weathering and seawater.

• Temperature range: -30℃ to + 100℃

• Min. floating buoyancy: 25%

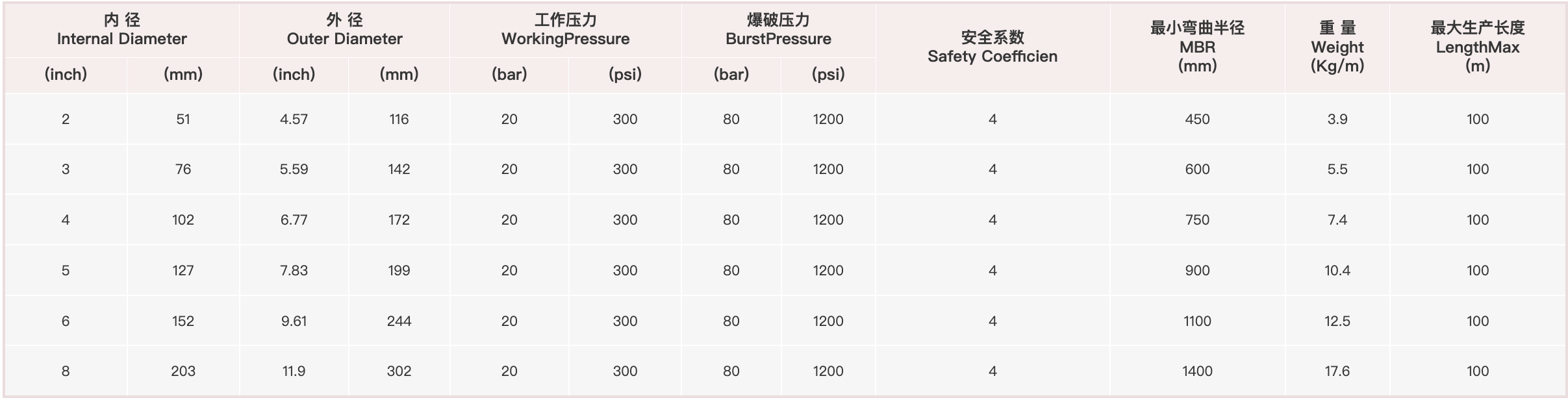

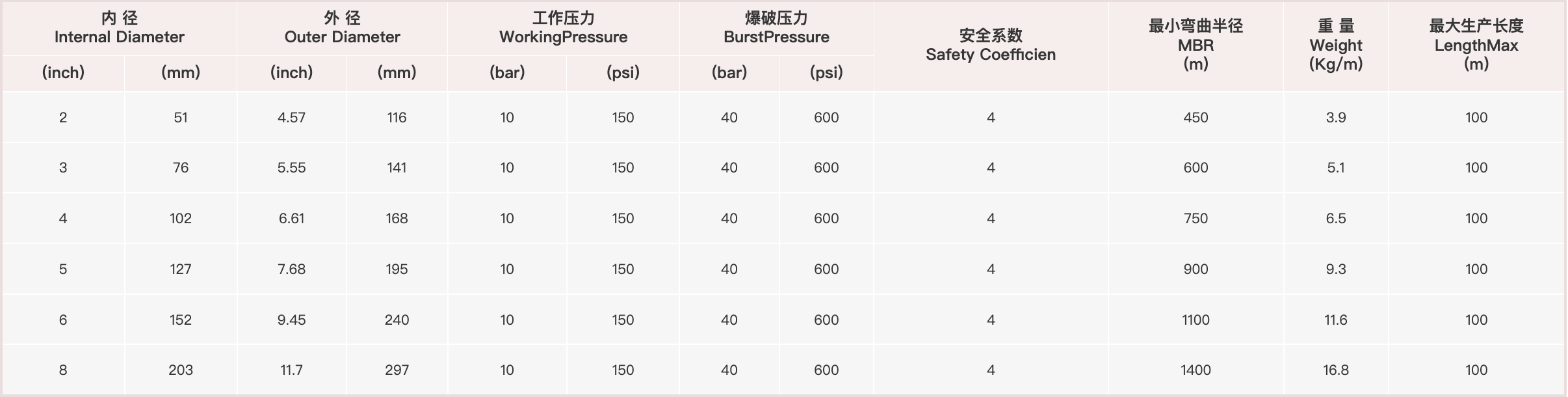

Technical Data

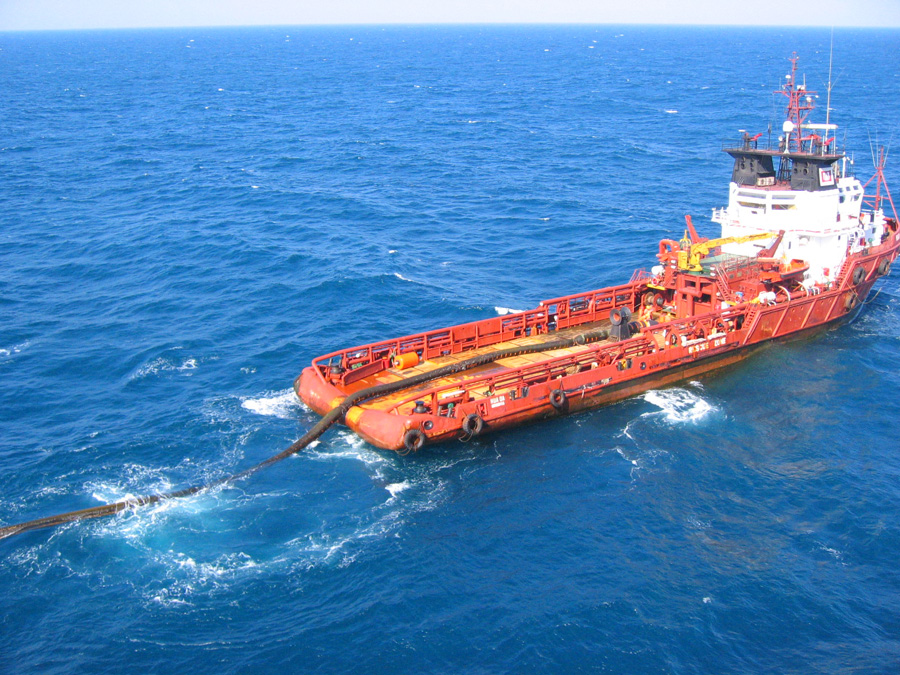

Applications
